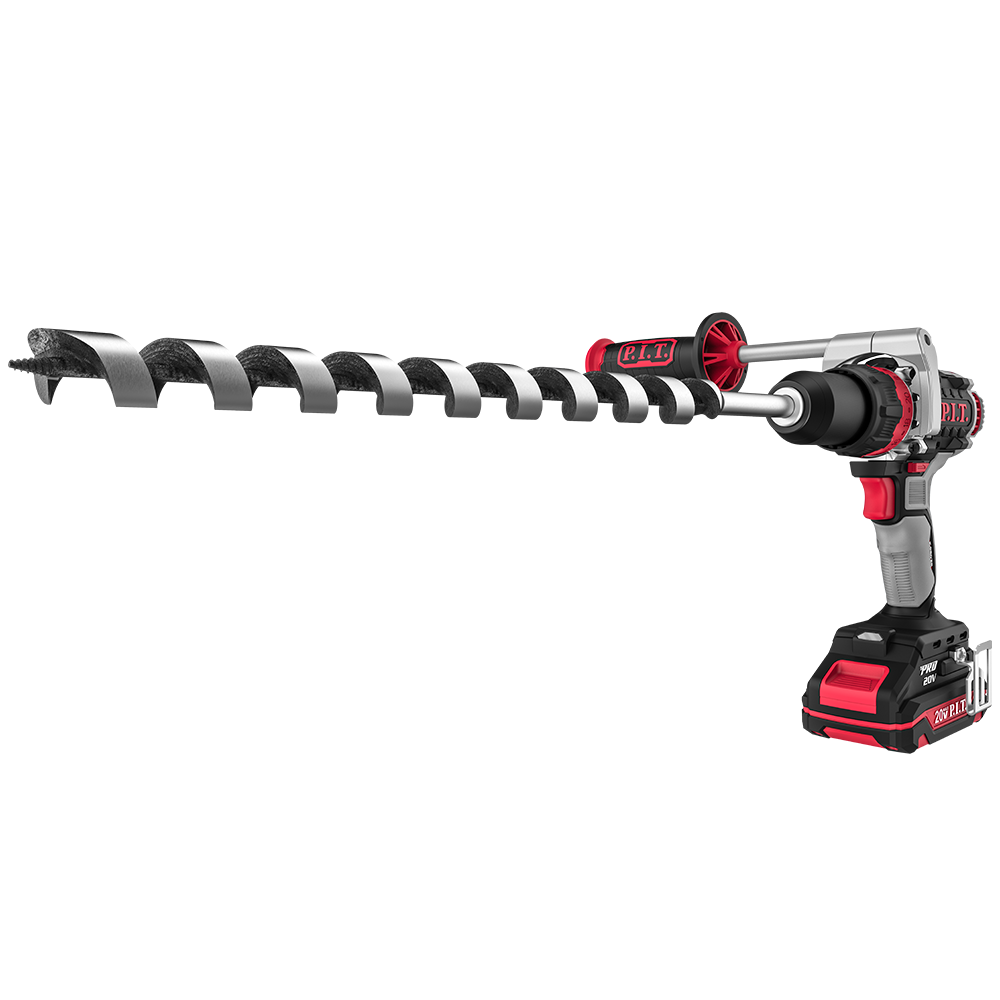

Brushless Cordless Impact Drill
Our cordless drill adopts brushless motor, BRUSHLESS is totally better than brushed. For brushless motors no need to change carbon brush, which is more durable. Moreover, no sparks are generated during use. It’s safer and no noise, which is more comfortable to use.
The maximum-diameter bit shank that fits the drill reaches 1/2″, which is the largest chuck size and works for much more projects than those of 3/8” chuck, with keyless and all-metal design, achieve easy bit-change, superior solid and maximum durability.
Powerful all-copper motor delivers 48Nm max torque, with 2-speed settings (0-400 rpm/0-1450 rpm) can easily complete a wide range of applications.3 modes (Impact Hammer, Driver, Drill),With a front LED work light illuminates any dark workspace.
15+2 Position Clutch & Variable Speed Trigger, powerful impact drill driver offers you all the daily needs even drill walls or metal and accomplish more than you ever expected.
Compact and lightweight design with superior motor minimize fatigue in most daily screwing and drilling tasks. Rubber-covered handle provides a comfortable grip without fatigue while using.
P.I.T. Lithium-Ion battery technology with overload protection for maximum durability of both.
Model
PSB20H-10C
PSB20H-13C
PSB20H-13D
Level
Professional
Professional
Professional
Voltage
DC 20V
DC 20V
DC 20V
Motor
Brushless Motor
Brushless Motor
Brushless Motor
Chuck MAX Capacity (mm)
φ10 mm
φ13 mm
φ13 mm
No-load Speed (rpm)
0-450/1450 r/min
0-600/2100 r/min
0-00/2000 r/min
Max. Torque (Nm)
40 N.m
110 N.m
75 N.m
Torque Setting
20+3
20+2
20+2
Impact Per Minute
0-6750/21750 ipm
0-9000/0-31500 ipm
0-4500/30000 ipm
Max.Drilling In Wood
Ф20 mm
Ф45 mm
Ф42 mm
Max.Drilling In Metal
Ф10 mm
Ф13 mm
Ф13 mm
Max.Drilling In Masonry
Ф10 mm
Ф13 mm
Ф13 mm
Operation Mode
Normal Drilling,impact Drilling,Screw Driving
Normal Drilling,impact Drilling,Screw Driving
Normal Drilling,impact Drilling,Screw Driving
Torque Adjustment
Yes
Yes
Yes
Reverse
Yes
Yes
Yes
Speed Select
Gear , 2 Stage Speed Change
Gear , 2 Stage Speed Change
Gear , 2 Stage Speed Change
Electronic speed control
CVT
CVT
CVT
Overload Protection
Yes
Yes
Yes
Undervoltage protection
Yes
Yes
Yes
Spindle Lock
Yes
Yes
Yes
Automatic braking
Yes
Yes
Yes
Chuck Type
Keyless Chuck
Keyless Metal Chuck
Keyless Metal Chuck
Work Light
Yes
Yes
Yes
Recomended Battery
≥2.0Ah
≥2.0Ah
≥2.0Ah
Driver Bit
1PC (PH2 x 50mm x PH2)
1PC (PH2 x 50mm x PH2)
1PC (PH2 x 50mm x PH2)
Bit Holder
1PC
1PC
1PC
Belt Hook
1PC
1PC
1PC
Battery
–
–
–
Charger
–
–
–
Masonry Drill Bit
2PCS(φ6mm、φ8mm)
2PCS(φ6mm、φ8mm)
2PCS(φ6mm、φ8mm)
Woodworking Drill Bit
2PCS(φ10mm、φ8mm)
2PCS(φ10mm、φ8mm)
2PCS(φ10mm、φ8mm)
Tile Drill Bit
–
2PCS(φ6mm、φ8mm)
–
Socket Wrench
3PCS(φ6mm、φ8mm、φ10mm)
–
3PCS(φ6mm、φ8mm、φ10mm)
Auxiliary Handle
1PC
1PC
1PC
Packaging
Color box + Master carton
Color box + Master carton
Color box + Master carton
Outer Carton Size
38.3 x38.2 x 22.9 cm
45 x25.5 x 33.6 cm
45 x 28.7 x 27.6 cm
QTY.
10PCS
6PCS
6PCS
Net Weight / Gross Weight
13.5/14.5 kg
13.5/14.5 kg
12/13 kg
20GP/40GP/40HQ
2058/4262/4997 PCS
2058/4262/4997 PCS
2058/4262/4997 PCS
